4  Wikidata and Other Open Knowledge Graphs

A knowledge graph represents a network of real-world entities—such as objects, events, situations, or concepts—and illustrates their relationship.

Most companies and institutions work with a variety of information systems that are not well integrated. Information is located in different places, inside and outside the organisation, and cannot be accessed as a whole. In recent decades, it has become clear that unifying these information sources into central databases or data lakes is rarely a good solution. Creating such centralised data stores is very costly and requires a lot of organisation. By the time centralisation is completed and finished, it often becomes apparent that the knowledge requirements and the methodology for organising data have changed.

Here’s where knowledge graphs come in. They can automatically integrate and present a unified view of diverse and initially unrelated data sources. For instance, in an enterprise, they can power initiatives like Customer 360. Moreover, knowledge graphs are ideal for implementing the Human-in-the-Loop (HITL) design principle in AI deployment. They offer a comprehensive view of the knowledge base that algorithms rely on, enhancing oversight and control.

4.1 Connect to Wikidata

Wikidata is a collaboratively edited multilingual knowledge graph hosted by the Wikimedia Foundation. It is a common source of open data that Wikimedia projects, such as Wikipedia and anyone else, can use under the CC0 public domain license1. As of early 2023, Wikidata had 1.54 billion item statements or small, verifiable scientific statements about our world.

Tip 4.1: Statements

A statement is simple element of knowledge with a true or false value. An atomic statement is a declarative sentence that attributes one property or relationship to an object or event. For example, it states the birthday of a person, or the location of an event.

A semantic triple, or RDF triple or simply triple, takes the form of an subject-predicate-object form, for example, S:Jane Doe P:has a birthday O:on 9 June.

Wikidata is a document-oriented database, focusing on items, which represent any kind of topic, concept, or object.

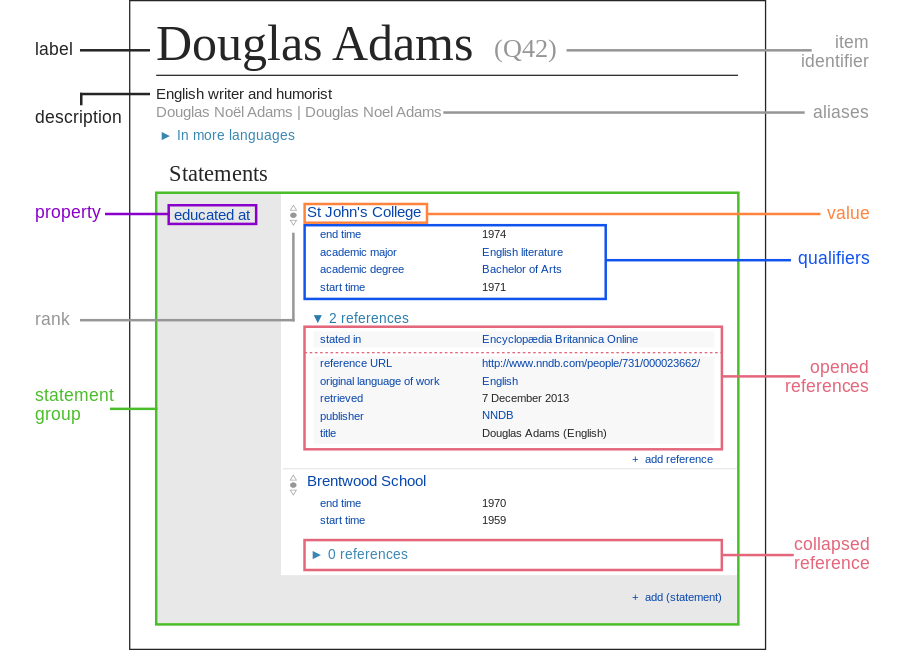

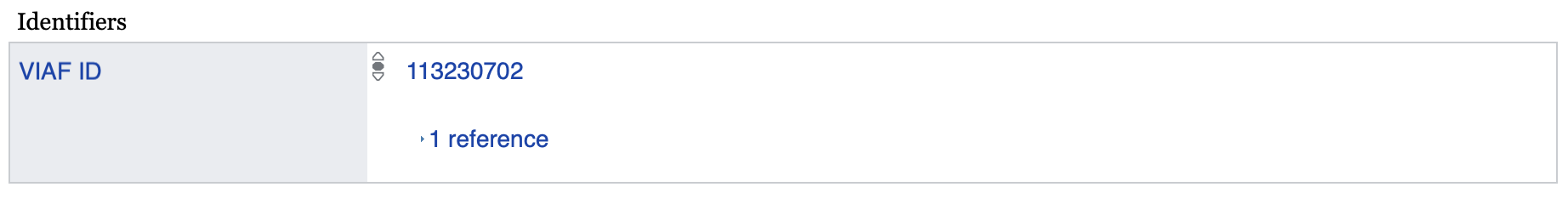

Wikidata is a document-oriented database. This document connects a lot of knowledge about the late English writer and humorist, Douglas Adams.

Knowledge graphs connect things in the real world, because their nodes—in Wikidata, the conceptual document—, represent people, objects, and their relationships as they are out there, and not as they are represented by an “ordinary” database . The Q42 document about the late English writer and humorist Douglas Adams connects facts about his life (birthday, place of birth, time of death), and connects him to his books, their translations, identifiers to look up these books, and so on.

Wikidata is a knowledge graph: it connects the concept of Douglas Adams (Q42), to the concept of his most quoted humorous episode from his world-famous Hitchhiker’s Guide to the Galaxy (Q25169) , which is a similarly structured document about the five books of his series, which document is further connected in the graph to the concept of the books’ Serbian translation (Q117279887).

Wikidata is not a database but a very useful system for filling up and keeping many databases in sync worldwide. If your own institutional or private library has a catalogue, you may have a copy of the Hitchhiker’s Guide to the Galaxy; in this case, your catalogue is likely to have a local, private identifier to your copy of the book. Imagine your little private catalogue, where you, like the editors of Wikidata, reserved the #42 entry to Douglas Adams’ book.

ID | Author | Title |

|——-|—————————————————————-|————————————————————————————-| | My-01 | Martell, Yann (Q13914) | Life of Pi (Q374204) | | … | … | … | | My-42 | Adams, Douglas (Q42) | Hitchhiker’s Guide to the Galaxy (Q25169) | | … | … | … |

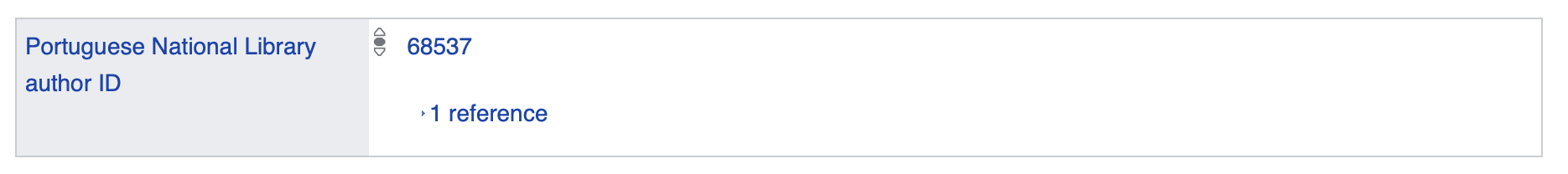

If you can connect your My-42 entry of Hitchhiker’s Guide to the Galaxy with the books’ Wikidata entry Q25169, you can import a wealth of information into your private catalogue. Furthermore, if you connect the Wikidata item Q42 of the author Douglas Adams to your catalogue’s own entry about the author, you can import a lot of additional knowledge, for example, information about his other works, or the end term of these books’ copyright protection, after which they will become public domain and they will be free to copy and distribute.

In Wikidata, each item has a unique, persistent identifier, a positive integer number, prefixed with the upper-case letter Q, known as a “QID”.Global information systems like to anchor authoritative information about people, books, musical works, and other important things to persistent identifiers. For example, in VIAF, the authority file that keeps information synchronised across national libraries, Douglas Adams’ persistent identifier is 113230702, whereas in the Portuguese National Library it is 68537. Wikidata is particularly useful because it serves as an “identity broker”, and this linking information can be retrieved directly from Douglas Adams’ Q42 page.

4.1.1 Getting started with Wikidata

4.1.1.1 Global Identities

Mr and Mrs Barasits, a.k.a. János Barasits (1859-1935) and his wife, Barasits, Jánosné, born Pichler, Kornélia, were prominent postcard producers and publishers at the beginning of the 20th century. They produced plenty of beautiful postcards.

In the 1920s and 1930s, the authors’ right (~copyright) protection of photographs and postcards was relatively short, only 15 years, so their postcards went into the public domain in terms of copying long ago. Plenty of their beautiful works are out there on the internet, but it is very hard to put them into a collection, because most databases know next to nothing about the identities of these creators and their creations.

Unfortunately, you cannot find their name in the most commonly used authority controls, i.e., VIAF or ISNI. Writing to VIAF is only possible via member institutions, and ISNI costs money. A temporary solution is to create a Wikidata QID for János Barasits (Q124423018), until somebody registers his name into VIAF. With this entry, it will be easier to find further postcards from them, or other information about them all over the world!

Writing in Wikidata is free for all and subject to community review. If you read this tutorial, please pledge to record new persons (or other items) into Wikidata, only if your knowledge is solid. You can verify the information needed through proper research.

4.1.1.2 Create a Wikidata Item

In this tutorial, you can learn how to create a new item on Wikidata. Countless web and AI applications and millions of people use Wikidata, so in the beginning it is recommended to not experiment with it in the live system. Wikidata has a Sandbox for practising. We recommend using it as a first step. If you work with Wikibase, particularly with Reprex’s OpenCollections, you will have access to a similar sandbox. It will be prefilled with data, concepts, and properties suitable for your learning needs, often going beyond what you would find in the public Wikidata.

Let’s see how you can create your own János Barasits item.

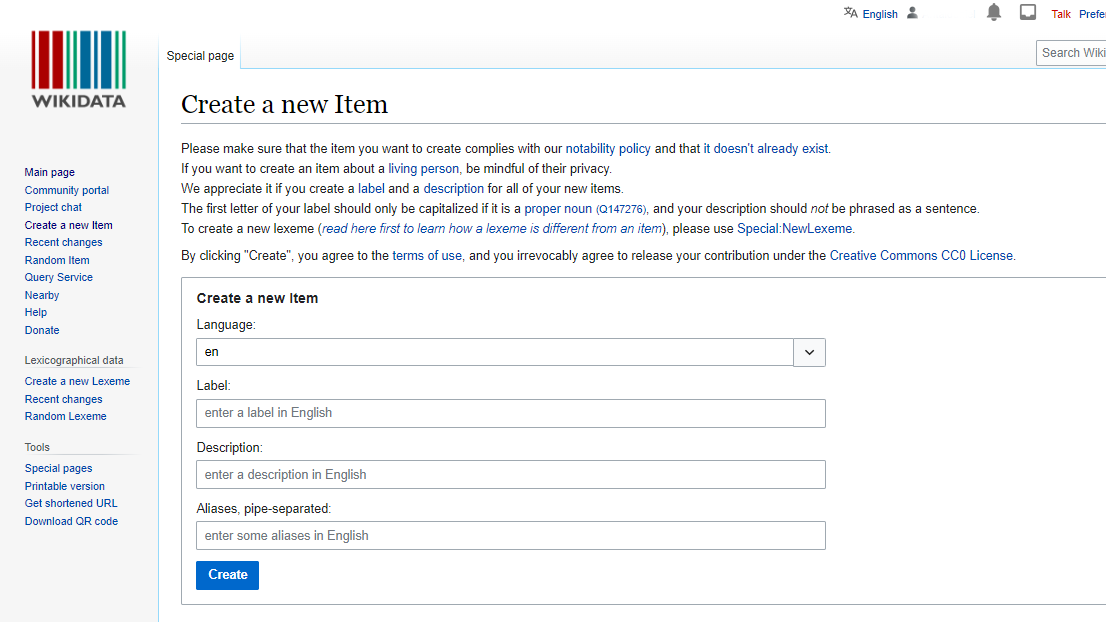

You can see how creating a new item looks like in the system:

The first step in creating an item (in this case an item for János Barasits) is providing the two most important information for an item, which is the Label and the Description.

The Label is the name of the item (in our case the label of the item will be “János Barasits”).

The Description contains a short explanation of our item (in our case the description for the item will be “Hungarian postcard maker and publisher).

Aliases are alternative names for the item.

After creating the item with the basic information of Label and Description we can weave this information entry into the knowledge graph. At this point, János Barasits could be a person, it could be a book titled after the person, or a photo of the person. Connecting János Barasits to other entities, such as the concept of a human being, will allow other people and their computer systems to understand that we are talking about a person here.You can do that by creating “statements” (See Tip 4.1.)

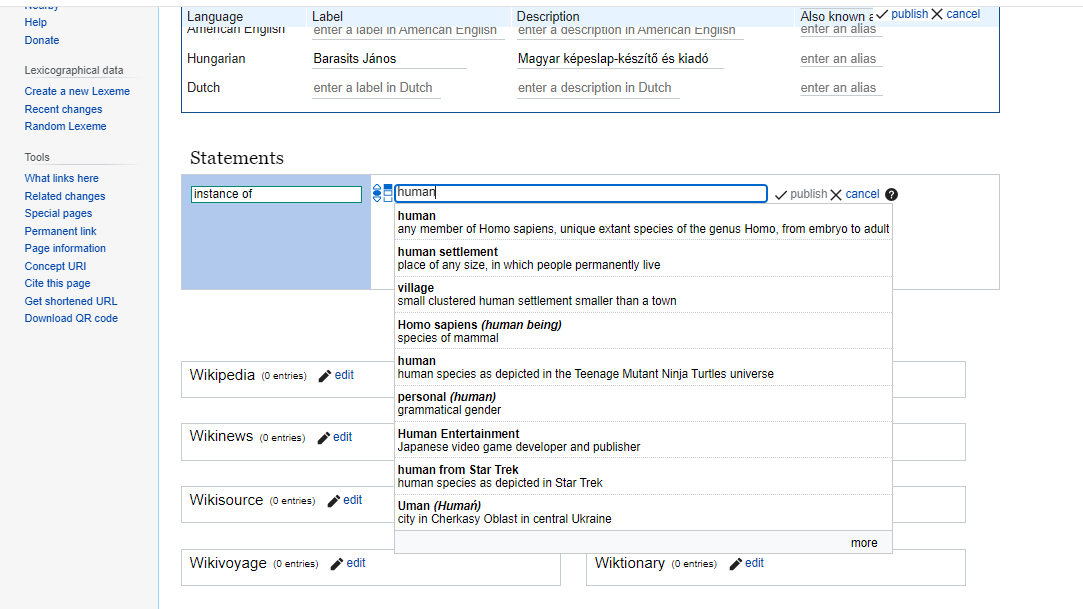

The property “instance of” defines the class our item is a particular example or member of. In this case we would like to make a statement about our item “János Barasits” defining with the property “instance of” that he is a member of the “human” class.

Through the sandbox explore the different type of properties and statements. Add a few basic statement to your new item:

  • János Barasits is a human—his gender was male—he was born in 1859 (with the precision of a year only)—he died in 1935.

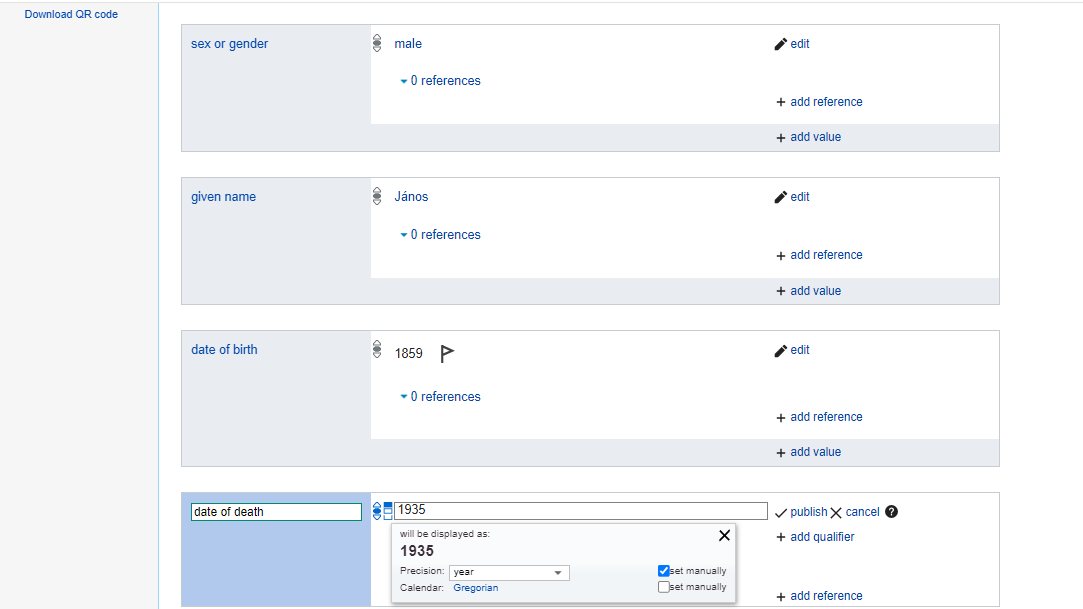

It should look similar to this:

To see another example on how useful knowledge graphs can be consider the following. The four characters, 1935 can be understood as a number for most readers, but such a data point without a defined meaning is useless. In a basic database you would see 1935 and know that it is a number. However, in knowledge graphs, like here on Wikidata, when we add the “metadata”, and we connect 1935 to the definition of date of death, we add a meaning (“semantics”) to the number 1935. Now, 1935 is not only a number but also a date of someone’s death.

The definition of date of death is useful in itself, but in a knowledge base, we can do even more with this piece of information. With this information we can combine the fact that in Europe the copyright protection term of people’s creation runs up to 70 years after their death. Thus, a knowledge base can infer the fact that currently János Barasits’s postcards are out of copyright and they can be freely copied and distributed!

Here is a very basic Wikidata page for János Barasits. What is very important, is that we have a globally unique identifier, Q124423018 that uniquely identifies him as a human. If you have a collection of postcards (digitals or analogue, vintage physical objects), connecting your own database with Q124423018 will help you to import the knowledge of the expired copyright protection term; it will help you finding other out-of-copyright scanned copies of Barasits’ postcards; it will be easier to connect to other collections that hold items from them, and so on.

4.1.2 Retrieve an item from Wikidata

Many internal enterprise resource systems or APIs use SQL, a 50+ year-old data query language. SQL is the lingua franca of relational database systems; you may be familiar with it. Can you query Wikidata in SQL?

Not exactly. It requires a different querying language, which was developed for knowledge graphs. It is called SPARQL because it is similar to SQL, but they are rather distant cousins.

While SQL is widely used, it does have a significant limitation: your query scripts are specific to one database system or API. What works in your internal catalogue may not function in another organisation’s. If you’ve written a script to update your data from a specific web API, it doesn’t guarantee that the script will be compatible with another API. Furthermore, it’s not future-proof: if the API owner (or your database manager) makes even a slight adjustment to the system, you may need to modify or rewrite your retrieval code.

Remember, the significant advantage of Wikidata and other open knowledge graphs is that millions of people work on improvements and extensions daily. This means that an SQL request would be outdated every day. Instead of SQL, SPARQL queries do not look for cells in data tables, but they use intelligent knowledge to find the cells containing data about what you need. In SQL, you need to know which table contains people’s birthdays and death dates to find out the year when János Barasits died. In SPARQL, you are looking for the cell that contains the date of death for the human known as János Barasits.

4.1.3 SPARQL basics

SPARQL, pronounced ‘sparkle’, is the standard query language and protocol for Linked Open Data and RDF databases. Having been designed to query a great variety of data, it can efficiently extract information hidden in non-uniform data and store it in various formats and sources. The SPARQL standard is designed and endorsed by the World Wide Web Consortium and helps users and developers focus on what they would like to know instead of how a database is organised. With SPARQL, you can access many large open knowledge resources, like the EU Open Data Portal (see here), the Eurostat data warehouse, or Wikidata (turorial here), or the knowledge basis of the Dutch heritage organisations, including the Rijksmuseum (see here).

Our data curators must be able to run SPARQL queries and make elementary modifications to them. Because we often import very large datasets, it would be very difficult to manually control every record on the graphical user interface. We use pre-written SPARQL queries (the data curator is expected to run via a simple URL link, perhaps modifying a class’s QID or a property’s PID) that serve as so-called unit tests. These queries programmed by Reprex allow simple tests like these:

A simple SPARQL query looks like this:

SELECT ?a ?b ?c
WHERE
{
  x y ?a.
  m n ?b.
  ?b f ?c.
}

Suppose we want to list all children of the baroque composer Johann Sebastian Bach. Using pseudo-elements like in the queries above, how would you write that query?

Hopefully you got something like this:

SELECT ?child
WHERE
{
  #  child "has parent" Bach
  ?child parent Bach.
  # (note: everything after a ‘#’ is a comment and ignored by WDQS.)
}

or this,

SELECT ?child
WHERE
{
  # child "has father" Bach
  ?child father Bach.
}

or this,

SELECT ?child
WHERE
{
  #  Bach "has child" child
  Bach child ?child.
}

The first two triples say that the ?child must have the parent/father Bach; the third says that Bach must have the child ?child. Let’s go with the second one for now.

So what remains to be done in order to turn this into a proper WDQS query? On Wikidata, items and properties are not identified by human-readable names like “father” (property) or “Bach” (item). (For good reason: “Johann Sebastian Bach” is also the name of a German painter, and “Bach” might also refer to the surname, the French commune, the Mercury crater, etc.) Instead, Wikidata items and properties are assigned an identifier. To find the identifier for an item, we search for the item and copy the Q-number of the result that sounds like it is the item we are looking for (based on the description, for example). To find the identifier for a property, we do the same, but search for “P:search term” instead of just “search term”, which limits the search to properties. This tells us that the famous composer Johann Sebastian Bach is Q1339, and the property to designate an item’s father is P:P22.

And last but not least, we need to include prefixes. For simple WDQS triples, items should be prefixed with wd:, and properties with wdt:. (But this only applies to fixed values – variables don’t get a prefix!)

Putting this together, we arrive at our first proper WDQS query:

SELECT ?child
WHERE
{
# ?child  father   Bach
  ?child wdt:P22 wd:Q1339.
}

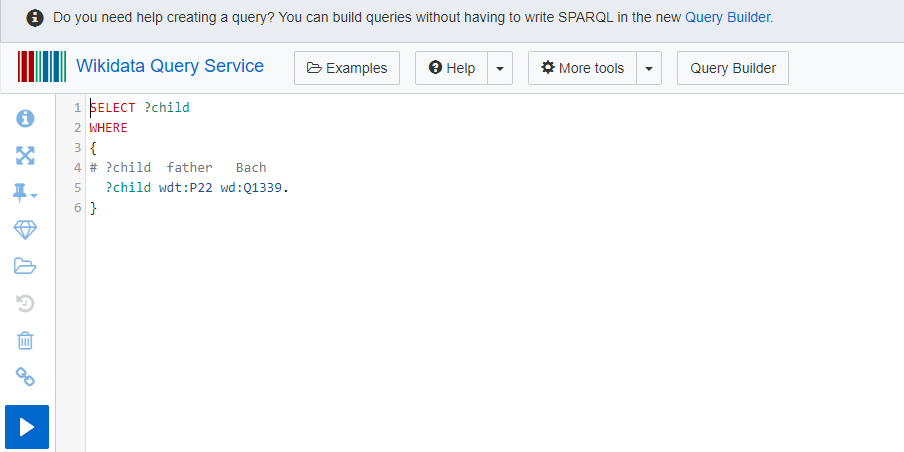

Try the first query:

Click on the image to try it out live on the Wikidata SPARQL Endpoint. The query will run if you press the ▶ sign on the endpoint in the bottom left corner.

Click on the image to try it out live on the Wikidata SPARQL Endpoint. The query will run if you press the ▶ sign on the endpoint in the bottom left corner.
Tip 4.2: Query timeout limit reached

If you recieve a Query timeout limit reached error message, it is likely that you tried to make a query that resulted in too many responses, and you ran out of memory or some other resource. This can be most likely solved with some kind of limitation on the number of possible answer rows that you get.

The simplest limitation is adding a last line to your query: limit 10, which limits the descendants of J.S. Back to the first 10 people (see the previous example with this limit.)

The first querry will provide you with identifiers, which is great if you are a programmer and you are wiring your database to Wikidata, but less impressive if you are getting familiar with SPARQL and you want to see clearly the fruits of your work.

Luckily, Wikidata has a human-friendly extension to SPARQL. If you add the following command to your query: SERVICE wikibase:label { bd:serviceParam wikibase:language "[AUTO_LANGUAGE]".somewhere within the WHERE clause, you get additional variables: For every variable ?foo in your query, you now also have a variable ?fooLabel, which contains the label of the item behind ?foo.

If you add this to the SELECT clause, you get the item as well as its label:

SELECT ?child ?childLabel
WHERE
{
# ?child  father   Bach
  ?child wdt:P22 wd:Q1339.
  SERVICE wikibase:label { bd:serviceParam wikibase:language "[AUTO_LANGUAGE]". }
}

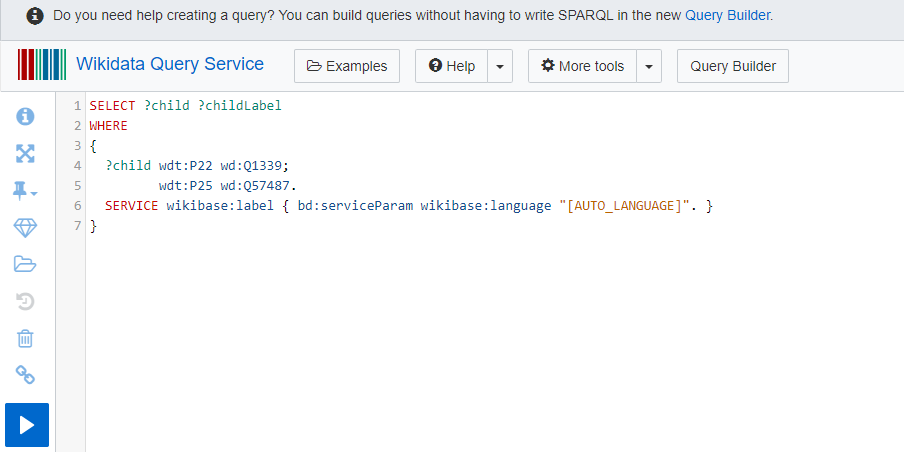

Click on the image to try it out live on the Wikidata SPARQL Endpoint. The query will run if you press the ▶ sign on the endpoint in the bottom left corner↗.

Click on the image to try it out live on the Wikidata SPARQL Endpoint. The query will run if you press the ▶ sign on the endpoint in the bottom left corner↗.

Try running that query – you should see not only the item numbers, but also the names of the various children.

child childLabel
wd:Q57225 Johann Christoph Friedrich Bach
wd:Q76428 Carl Philipp Emanuel Bach
…

4.1.4 Pre-filter Wikidata

When you work with OpenCollections or Wikibase, you may want to synchronize your knowledge graph with Wikidata. A straightforward way to do this is to import a part of the Wikidata knowledge graph into your instance.

Imagine you would like to copy the definition of a human, Béla Bartók, to your Wikibase instances. The following querry

SELECT DISTINCT ?itemLabel ?itemLabelLang ?itemDescription ?itemDescriptionLang ?aliases ?aliasesLang WHERE {
  wd:Q83326 rdfs:label ?itemLabel ;
            schema:description ?itemDescription .
  OPTIONAL {
    wd:Q83326 skos:altLabel ?aliases .
    BIND(LANG(?aliases) AS ?aliasesLang)
  }
  BIND(LANG(?itemLabel) AS ?itemLabelLang)
  BIND(LANG(?itemDescription) AS ?itemDescriptionLang)
  FILTER(?itemLabelLang IN ("en", "de", "hu", "sk", "lt", "bg"))
  FILTER(?itemDescriptionLang IN ("en", "de", "hu", "sk", "lt", "bg"))
  FILTER(?aliasesLang IN ("en", "de", "hu", "sk", "lt", "bg"))
}

Try it out↗

You would like to copy property definitions to your Wikibase instance. The following code will provide you the necessary information (without additional statements) about the property wd:P31—a very important property for data modelling.

SELECT ?property ?propertyLabel ?dataType ?propertyDescription ?lang ?alias WHERE {
  VALUES ?property { wd:P31 }  # Replace these IDs with the property IDs you are interested in
  ?property a wikibase:Property .
  ?property wikibase:propertyType ?dataType .

  # Fetch labels in the specified languages
  ?property rdfs:label ?propertyLabel .
  BIND(LANG(?propertyLabel) AS ?lang)
  FILTER(?lang IN ("en", "fr", "sk", "hu", "bg", "lt"))  # Replace these your languages
  BIND(IF(?lang = "en", 1, 2) AS ?labelRank)

  # Fetch descriptions in the specified languages
  OPTIONAL {
    ?property schema:description ?propertyDescription .
    FILTER(LANG(?propertyDescription) IN ("en", "fr", "sk", "hu", "bg", "lt"))
    FILTER(LANG(?propertyDescription) = ?lang)  # Ensure matching languages
  }
  # Fetch aliases in the specified languages
  OPTIONAL {
  ?property skos:altLabel ?alias .
  FILTER(LANG(?alias) IN ("en", "fr", "sk", "hu", "bg", "lt"))
  FILTER(LANG(?alias) = ?lang)  # Ensure matching languages
  }

}
ORDER BY ?labelRank ?lang

Try it out↗

The same query without aliases

Imagine you would like to work with the biographical data of photographers connected to Hungary. The following query can show you who has information on Wikidata. You may decide to import this information and use it as a starting point.

# Photographers: citizens of Hungary

SELECT ?item ?itemLabel  ?givenNameLabel ?lastnameLabel ?birthdate ?deathdate ?nationalityLabel ?itemDescription WHERE {
    ?item wdt:P31 wd:Q5 .                # instance of human
    ?item wdt:P106/wdt:P279* wd:Q33231.  # occupation,subclass of occupation photographer
    ?item wdt:P27 wd:Q28.                # country of citizenship is Hungary
    optional { ?item wdt:P735 ?lastname . }
    optional { ?item wdt:P734 ?givenName . }
    optional { ?item wdt:P569 ?birthdate . }
    optional { ?item wdt:P570 ?deathdate . }
    optional { ?item wdt:P27 ?nationality . }

  SERVICE wikibase:label { bd:serviceParam wikibase:language "en,hu" }
}

order by ?itemLabel

Try it out↗. Beware, that Wikidata is huge, and the query may take minutes to run; you often get an error message that your query runs out of resources. Then try again, or add a limit statement like in the previous tipbox example with the descendants of J.S. Bach.

Or similarly, with composers connected to Slovakia:

# Composers: citizens of Slovakia

SELECT ?item ?itemLabel  ?givenNameLabel ?lastnameLabel ?birthdate ?deathdate ?nationalityLabel ?itemDescription WHERE {
    ?item wdt:P31 wd:Q5 .                # instance of human
    ?item wdt:P106/wdt:P279* wd:Q36834.  # occupation or subclass of occupation that is composer
    ?item wdt:P27 wd:Q214.               # country of citizenship is Slovakia
    optional { ?item wdt:P735 ?lastname . }
    optional { ?item wdt:P734 ?givenName . }
    optional { ?item wdt:P569 ?birthdate . }
    optional { ?item wdt:P570 ?deathdate . }
    optional { ?item wdt:P27 ?nationality . }

  SERVICE wikibase:label { bd:serviceParam wikibase:language "en,sk,de,hu" }
}

order by ?itemLabel

Try it out↗
